PRODUCT CODE: DB0200-138DV
BASIC FEATURES
| external dimensions | 1380 x 600 x 380 mm |
| power | 3 kW |
| power supply | 230 V |
| well dimensions | 1280 x 510 x 230 mm |
| capacity | 4 x GN1/1-200 mm |
| temperature range | +30 ÷ +90oC |

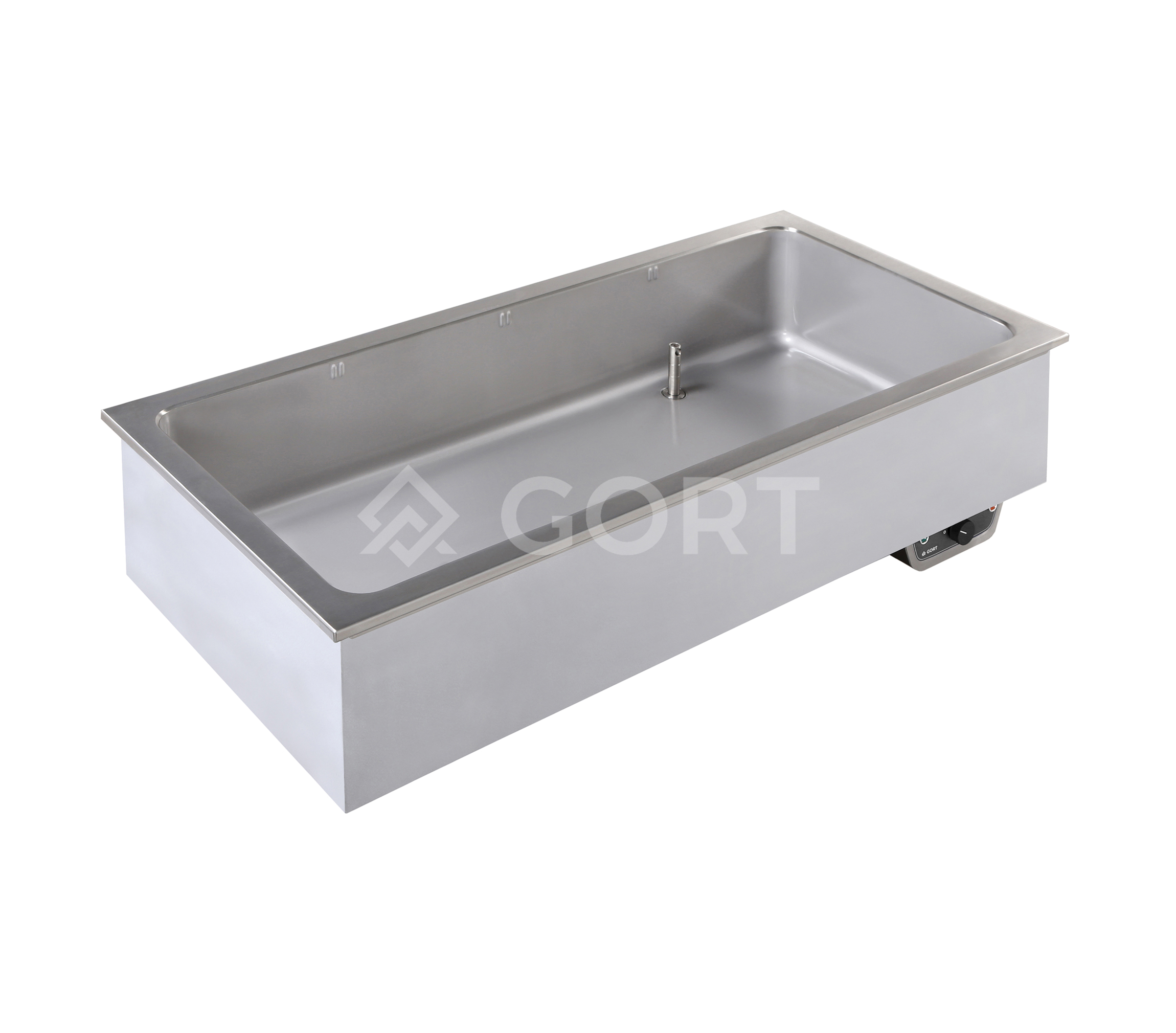

DROP-IN bain marie:
- Integrated control panel (electromechanical control) with manual water filling.
- Surfaces made of stainless steel.
-
High hygiene and easy cleaning:
– pressed well, rounded inner edges and corners
– fall of well’s bottom towards the outlet
– heating elements located under the tank. - Efficient heating system:
– fast heating and even temperature distribution
– low thermal inertia
– high reliability. -
Smooth temperature adjustment.
-
Easy water drainage from the well (overflow pipe).
- Polyurethane insulation.
-
Water drain from the well into sewage system (water outlet G ¾”).
- Additional accessories:
- DY00001 support bar 535 mm
- DY00001 support bar 535 mm
- The offer also includes the versions:

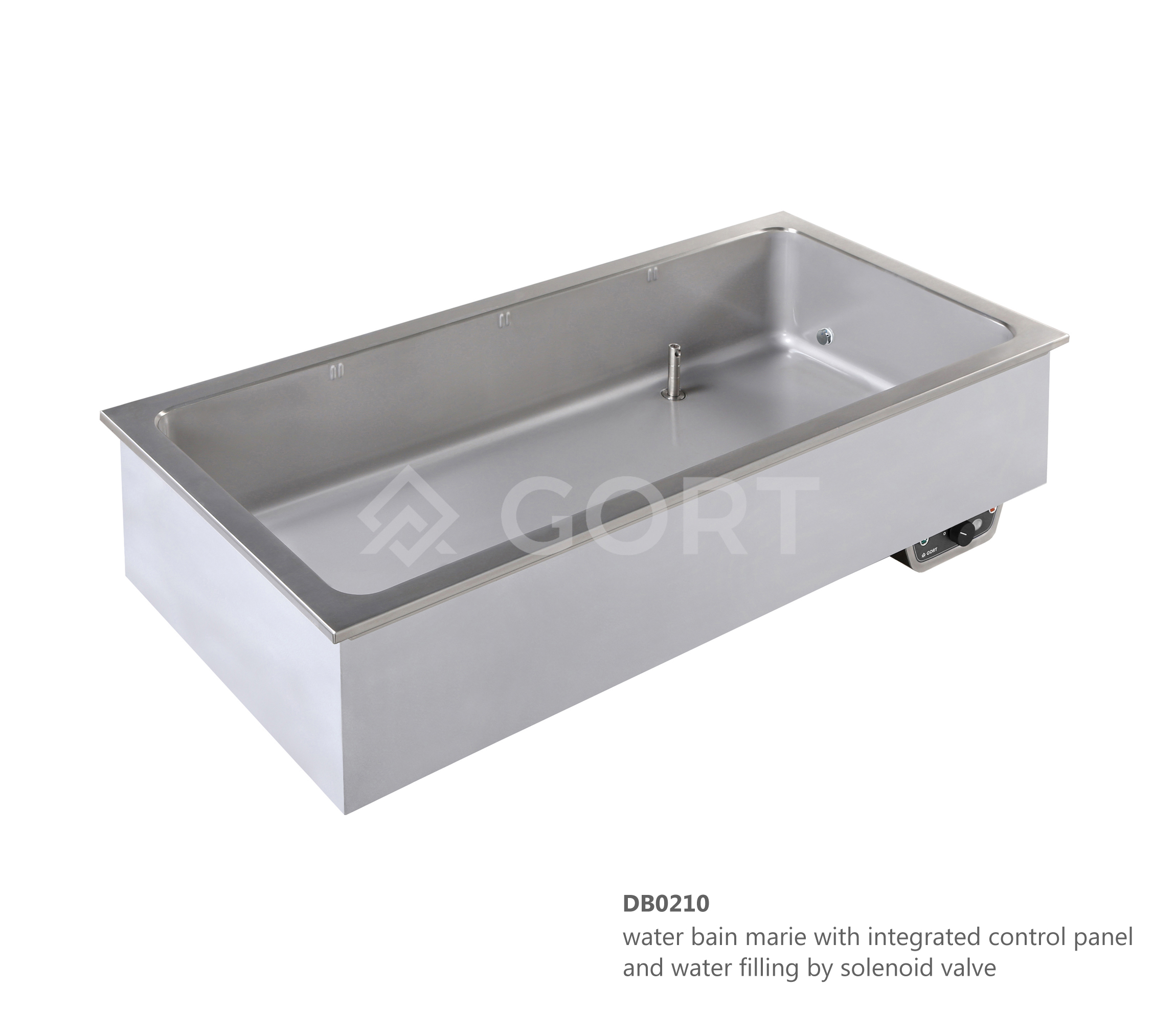

- with integrated control panel and water filling by solenoid valve DB0210-138DV

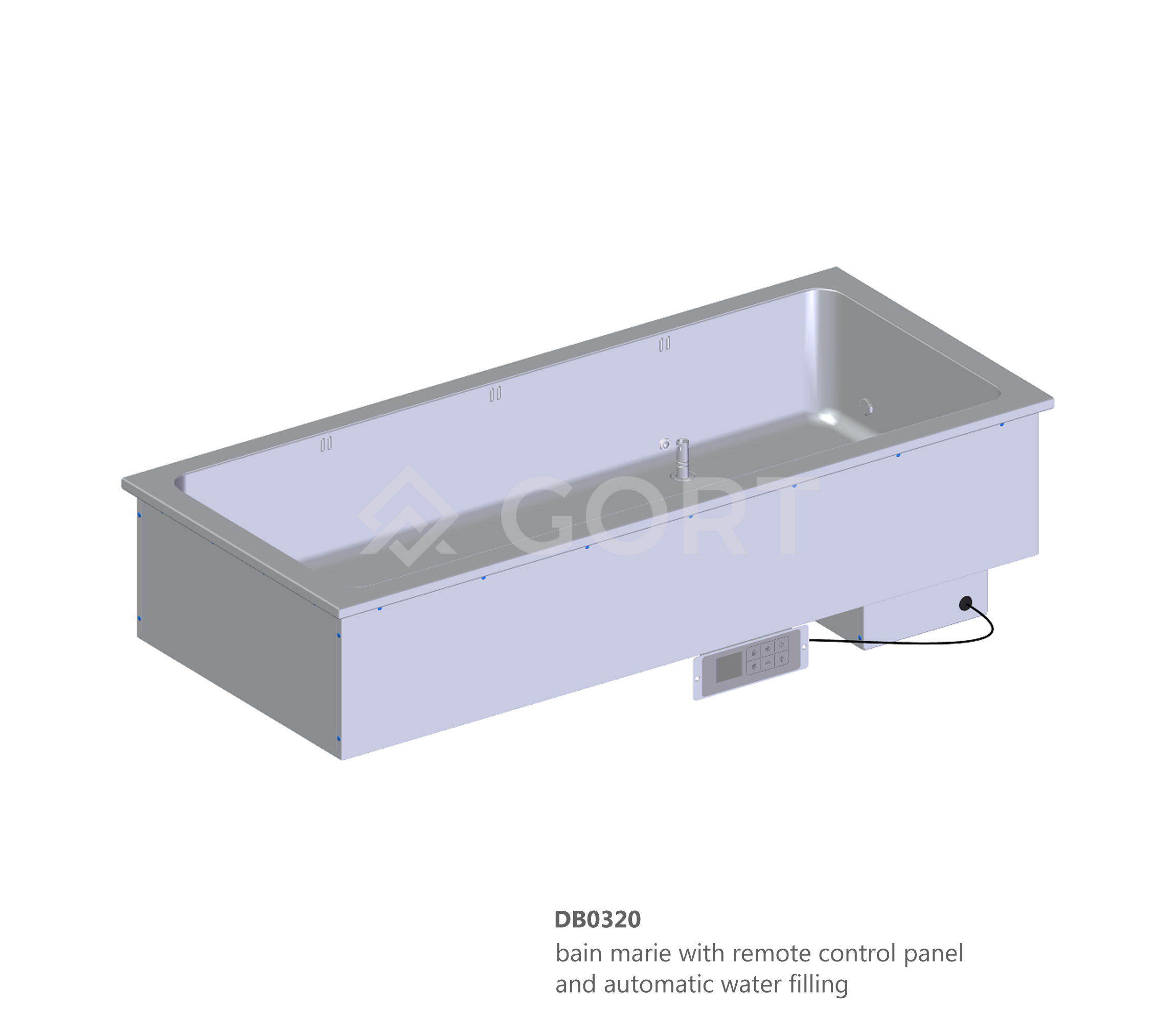

- with remote control panel, automatic water filling and electronic level control DB0320-138DV
