PRODUCT CODE: SD-AB050
BACIC FEATURES
| dimensions | 510÷5000 mm x 300÷400 mm |
| type of drain channel | two-part |
| siphion position | central |
| type of siphon (to choose) |
|
Drain channels:
- Central position of the siphon.
- Made of AISI 304 stainless steel in form of a hermetic welded channel with a flange to settle into the siphon.
- Stainless steel 0,8 – 2,0 mm thick.
- Flat channel with the fall towards the outlet.
- Side walls equipped with levelling pins.
- Possible adjustment of the channel in 3 levels: height, rotation and slope.
- Available in several channel’s edge profiles, depending on the floor finish:
- standard (in the photo)
- for vinyl floor
- for tiled floor
- Recommended for watertight (waterproof) floors.
- Drain outlet ended with siphon and s/s pipe DN100, ∅ external 108 mm.
- Optional: smooth or anti-slip mesh gratings of different mesh sizes.

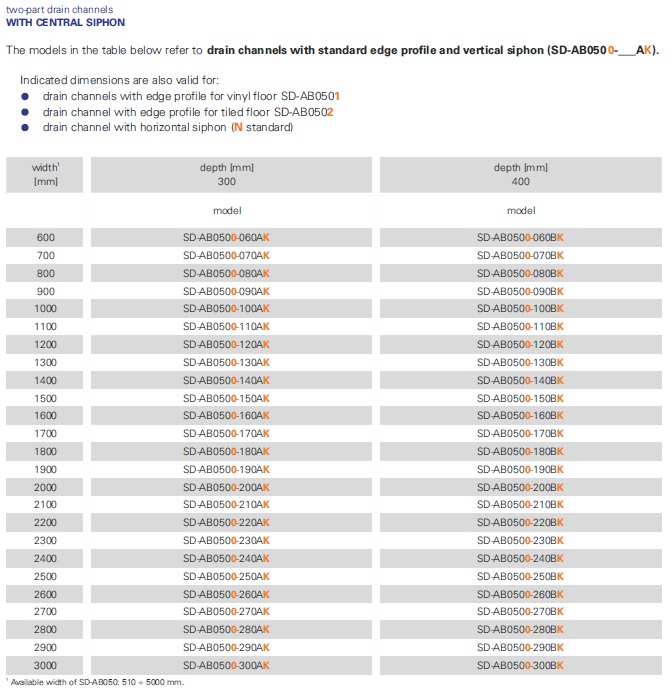

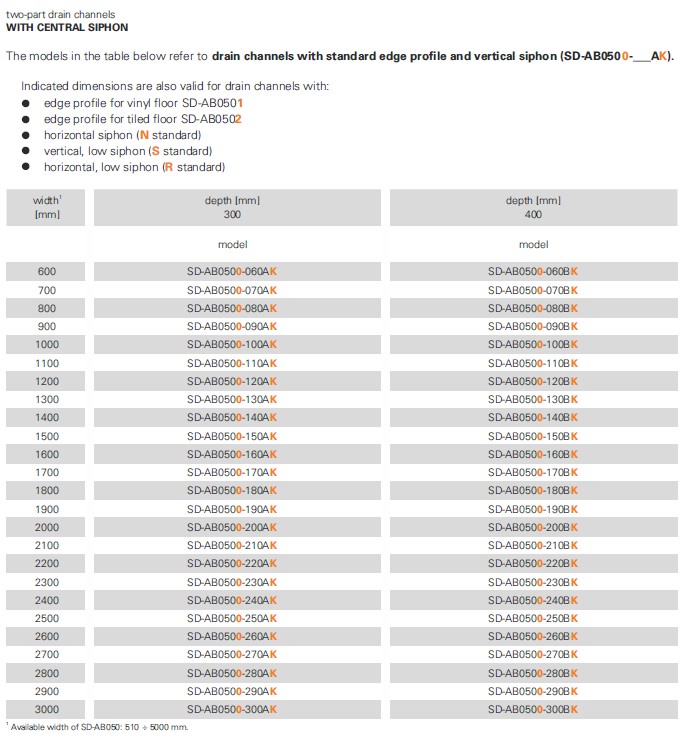

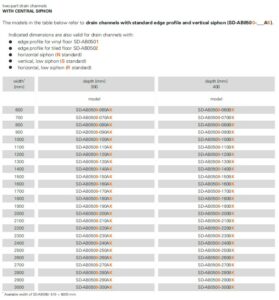

TABLE OF MODELS
