PRODUCT CODE: GK311510-080GV
BASIC FEATURES
dimensions | 800 x 930 x 850/1577 mm |
saturated steam pressure | 0,04 ÷ 0,043 MPa |
supply steam temperature | 110oC |
capacity | 150 L |
steam consumption | 65 kg/h |
wersion | autoclave |

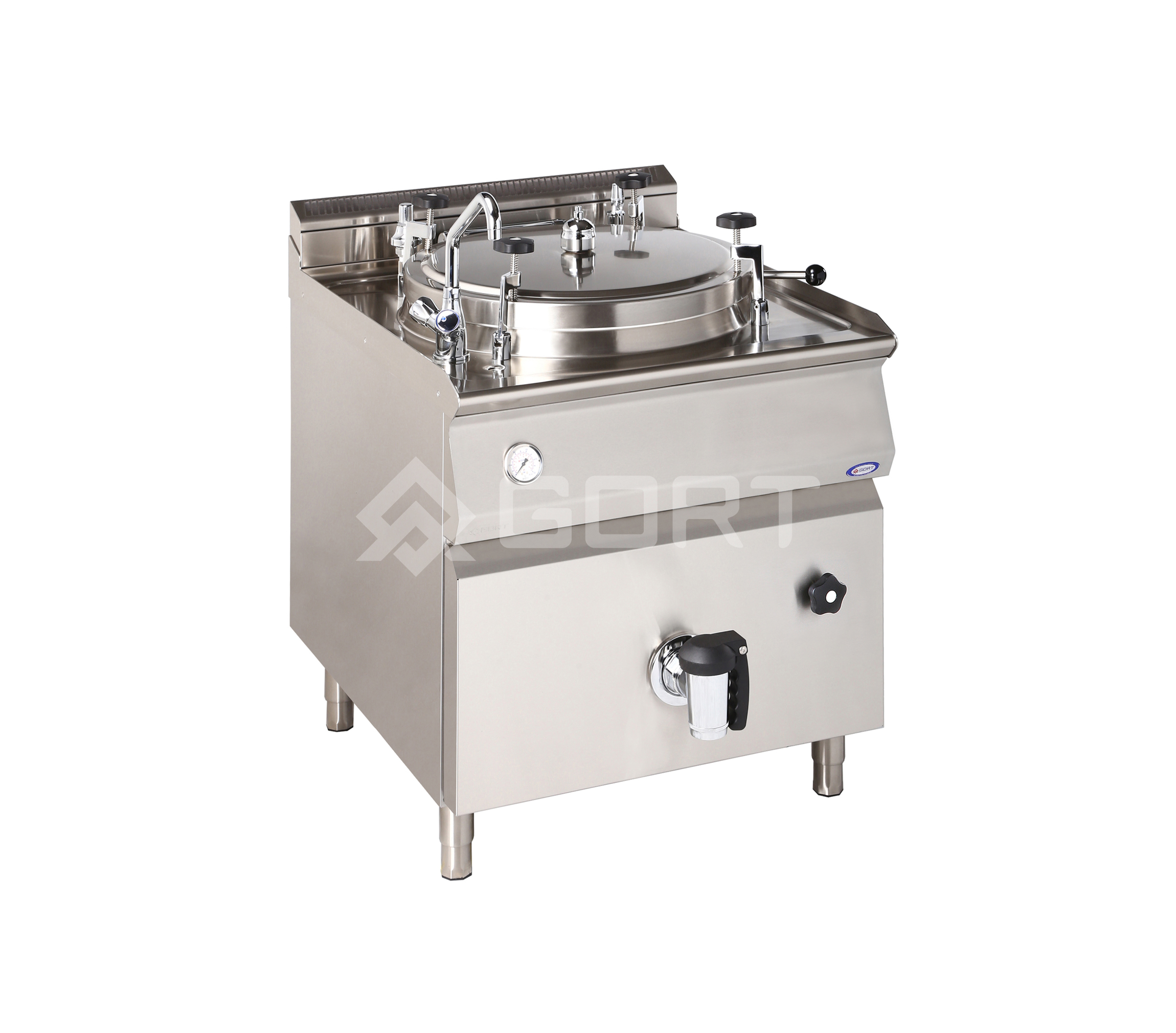

Steam boiling pan 150 L:
- AUTOCLAVE version: lid gasket, tightening lid clamps, safety valve on lid 0,05 bar.
- Polished cooking tank bottom, made of AISI 316 stainless steel:
– increased durability
– easy cleaning - Appliance body made of high quality stainless steel.
- Embossed top plate prevents spilling.
- High chimney.
- Pressed balanced lid.
- Rotating fresh water tap.
- Safety valve.
- Manometer located on the control panel.
- High quality drain valve 2″
- Hair-joint connection system – perfectly smooth connection between GORT LINE 900 units standing next to each other.
- Height adjustable round s/s legs.
- Working pressure in water jacket 0,5bar.
- Hot and cold water tap connection 2 x G½″.
- Steam connection G1¼”.
- Condensate connection G½”.
- Worktop water drain ∅30.
