PRODUCT CODE: GK611500-080GV
BASIC FEATURES
| dimensions | 800 x 930 x 850/1577 mm |
| gas power | 23 kW |
| power supply | 0,2 kW / 230 V / 50 HZ, 1N+PE |
| power | 0,2 kW |
| capacity | 150 L |
| Wersion | standard |
| jacket filling system* | automatic |

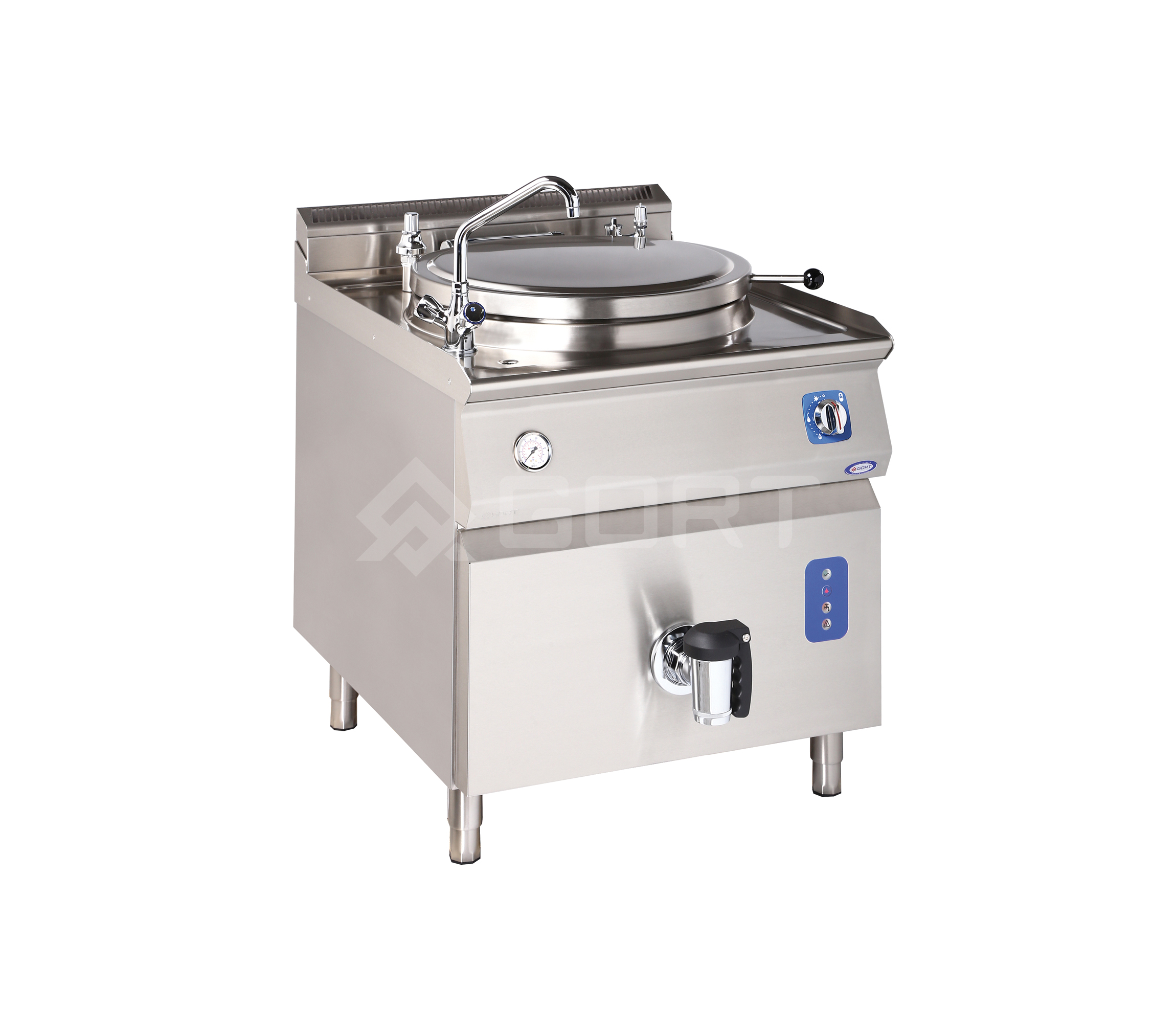

Gas boiling pan 150L:
- Automatic filling of the jacket (*manual filling of the jacket also available in the offer – GK211500-080GV).
- Indirect heating by water jacket.
- Polished cooking tank bottom, made of AISI 316 stainless steel:
– increased durability
– easy cleaning - Appliance body made of high quality stainless steel.
- Embossed top plate prevents spilling.
- High chimney.
- Pressed balanced lid.
- Rotating fresh water tap.
- Safety valve.
- Manometer located on the control panel.
- Electronic water level control of the jacket.
- Visual indicator of water alarm level in the jacket.
- High quality drain valve 2″
- Smooth power adjustment of burner.
- Efficient gas burner ensures high-performance with low gas consumption.
- Electrochemical protection of water jacket against corrosion.
- Gas anti-outflow protection – cut off the gas flow in the case of accidental extinguishing of the flame.
-
The appliance has been tested and CE approved by one of the most rigorous notified bodies in Europe.
-
Hair-joint connection system – perfectly smooth connection between GORT LINE 900 units standing next to each other.
-
Height adjustable round s/s legs.
- Working pressure in water jacket 0,5bar.
- Hot and cold water tap connection 2 x G½″.
- Treated water connection G¾″.
- Worktop water drain ∅30.
- International Protection Rating IPX4.
- While placing an order please specify gas type (G20; G25; G25.3; G2.350; G27; G30/G31).
