PRODUCT CODE: DS120_-073DV
BASIC FEATURES
external dimensions | 730 x 600 x 635 mm |
power | 0,39 kW |
power supply | 230 V |
well dimensions | 630 x 510 x 170 mm |
capacity | 2 x GN1/1-150 mm |
temperature range | +2 ÷ +10oC |
ambient temperature | +25oC |

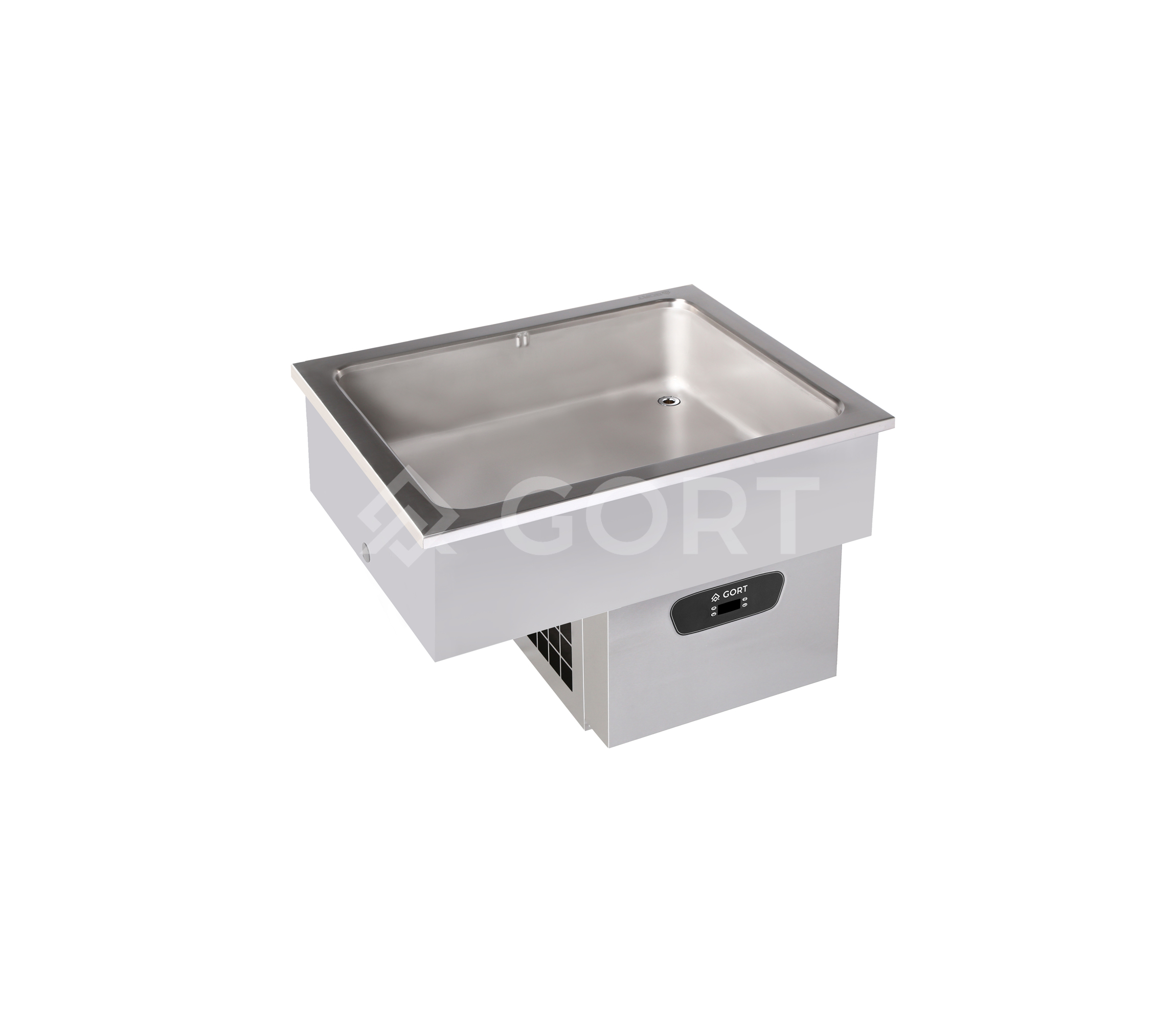

DROP-IN refrigerated static well:
- Integrated control panel.
- Digital temperature control and display.
- Usable surfaces made of stainless steel.
- High hygiene and easy cleaning:
– pressed well, rounded inner edges and corners
– fall of well’s bottom towards the outlet
(easier removal of condensate). - 8 compressor compartment ventilation options – the choice depends on the front décor panels and selected control panel.
- Static refrigeration with cooling coil.
- Ecological refrigerant.
- Polyurethane insulation.
- Water drain from the well into condensate container or into sewage system (water outlet G ¾”).
- Additional accessories:
- DY00001 support bar 535 mm
- DY00001 support bar 535 mm
- The offer also includes the versions:

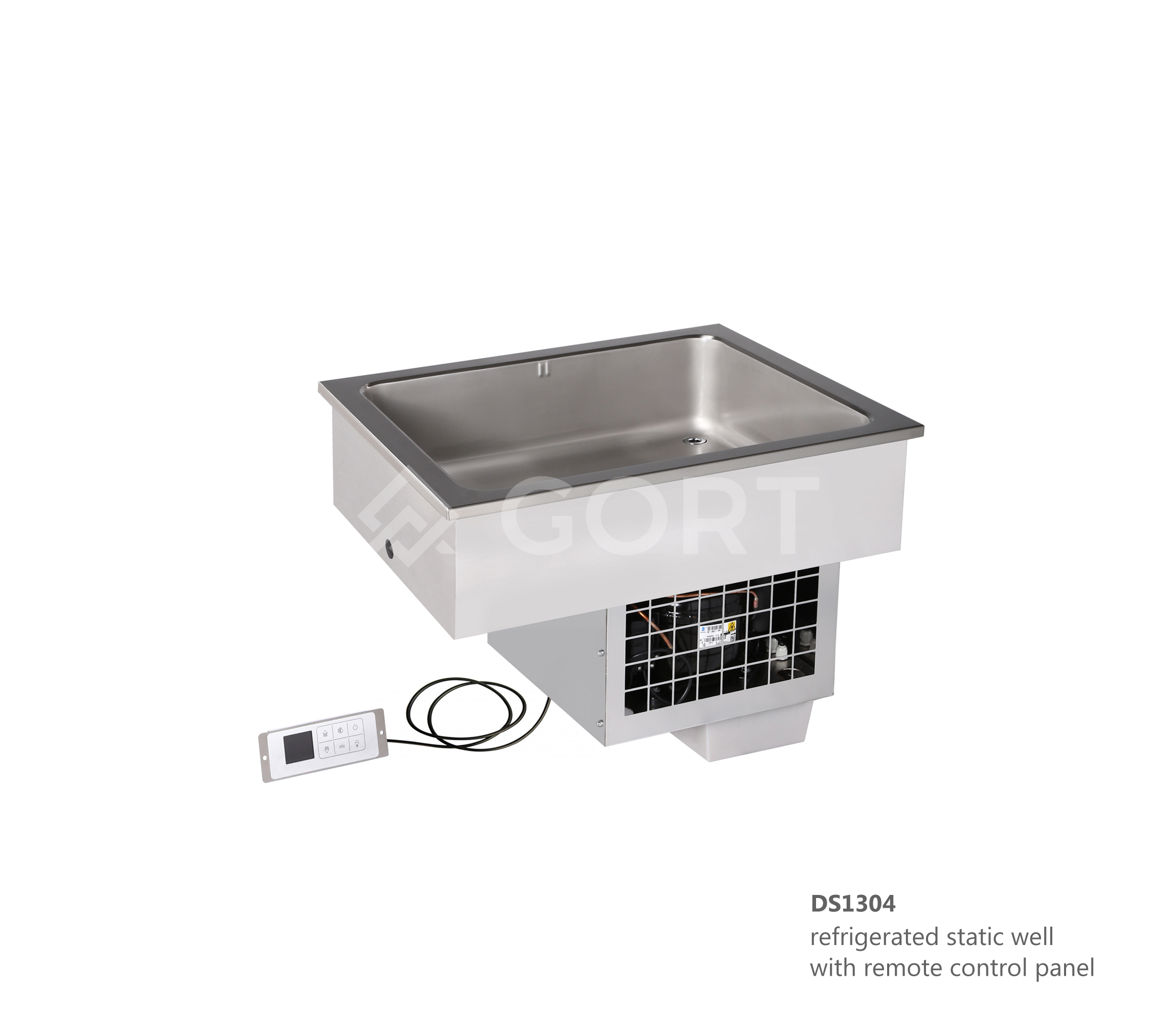

- with remote control panel DS130_-073DV

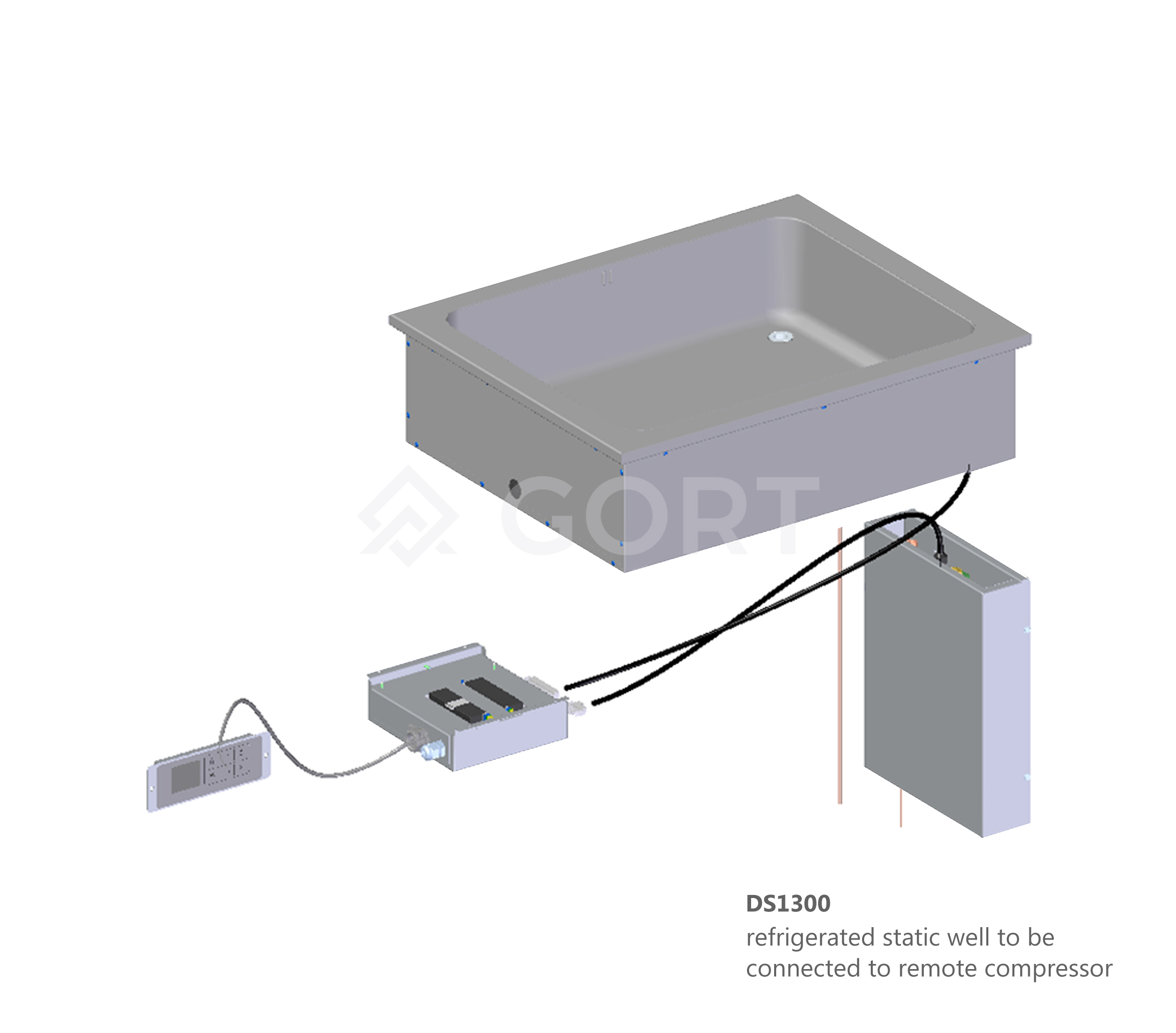

- to be connected to remote compressor DS1300-073DV.
